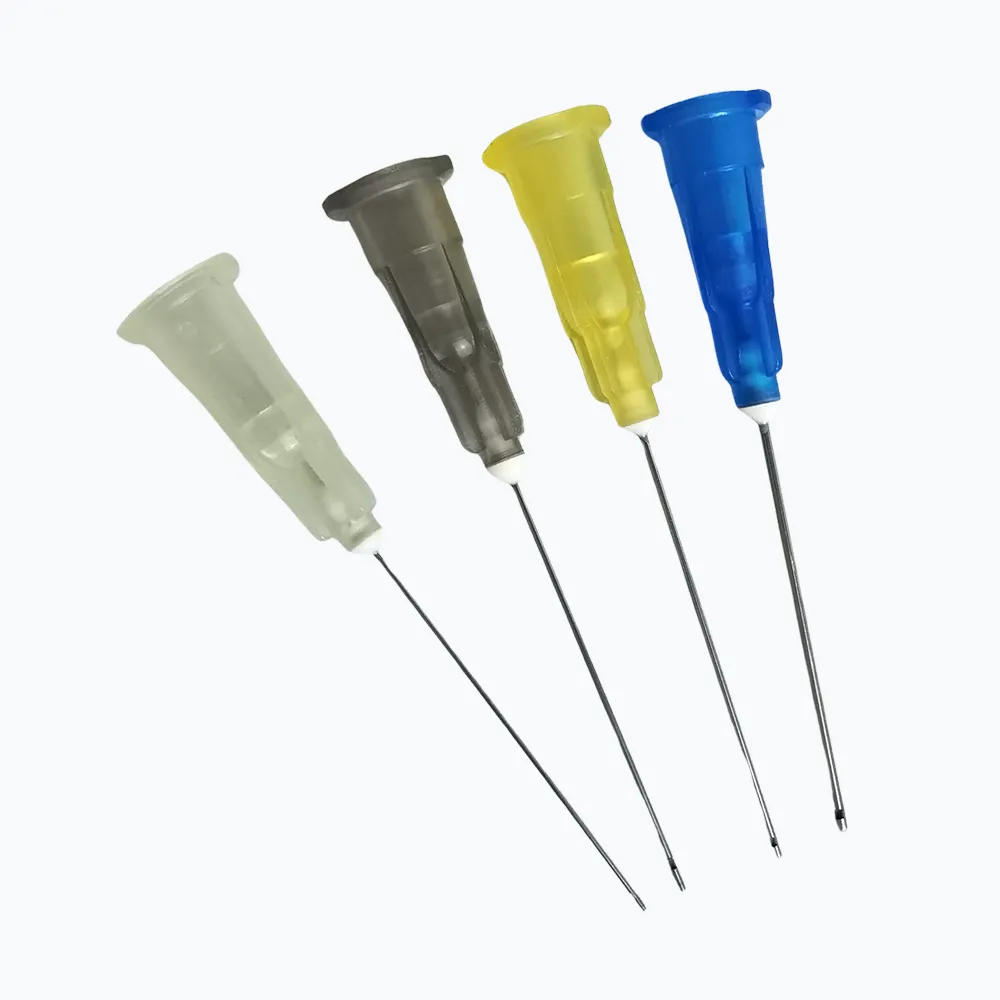

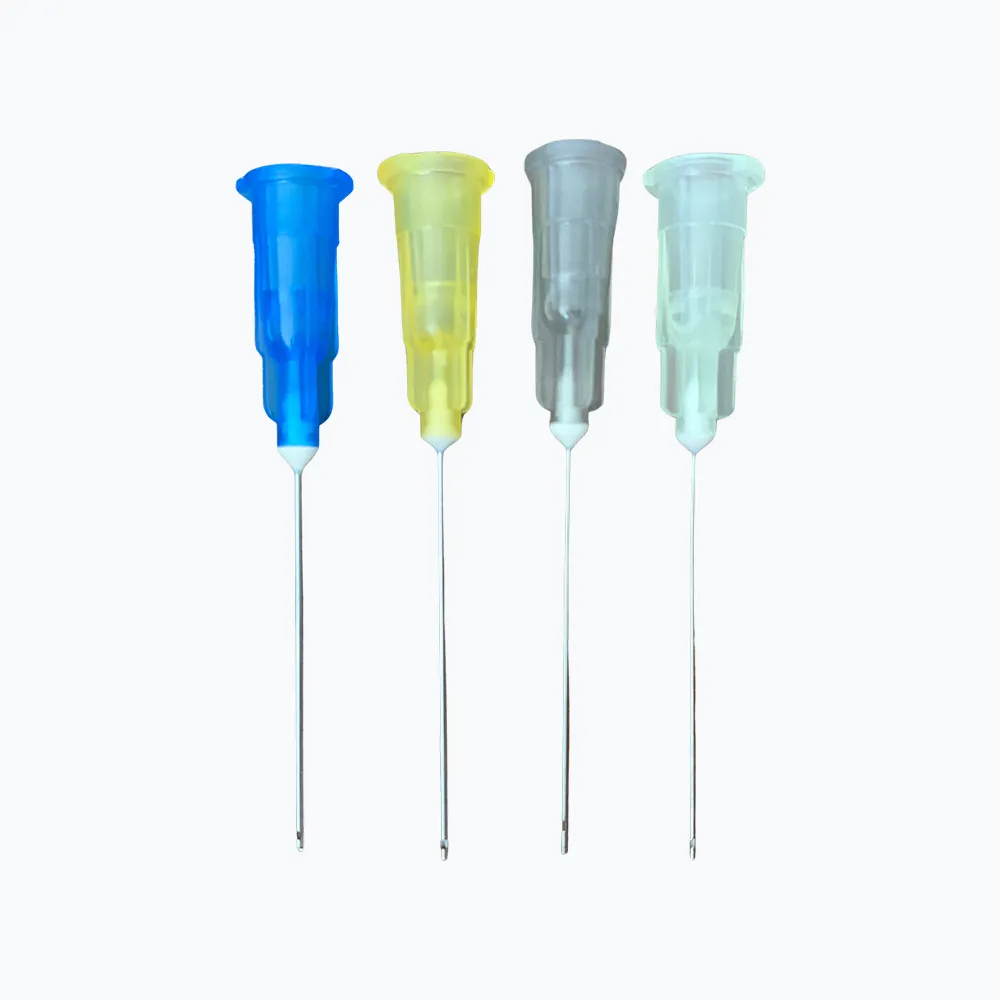

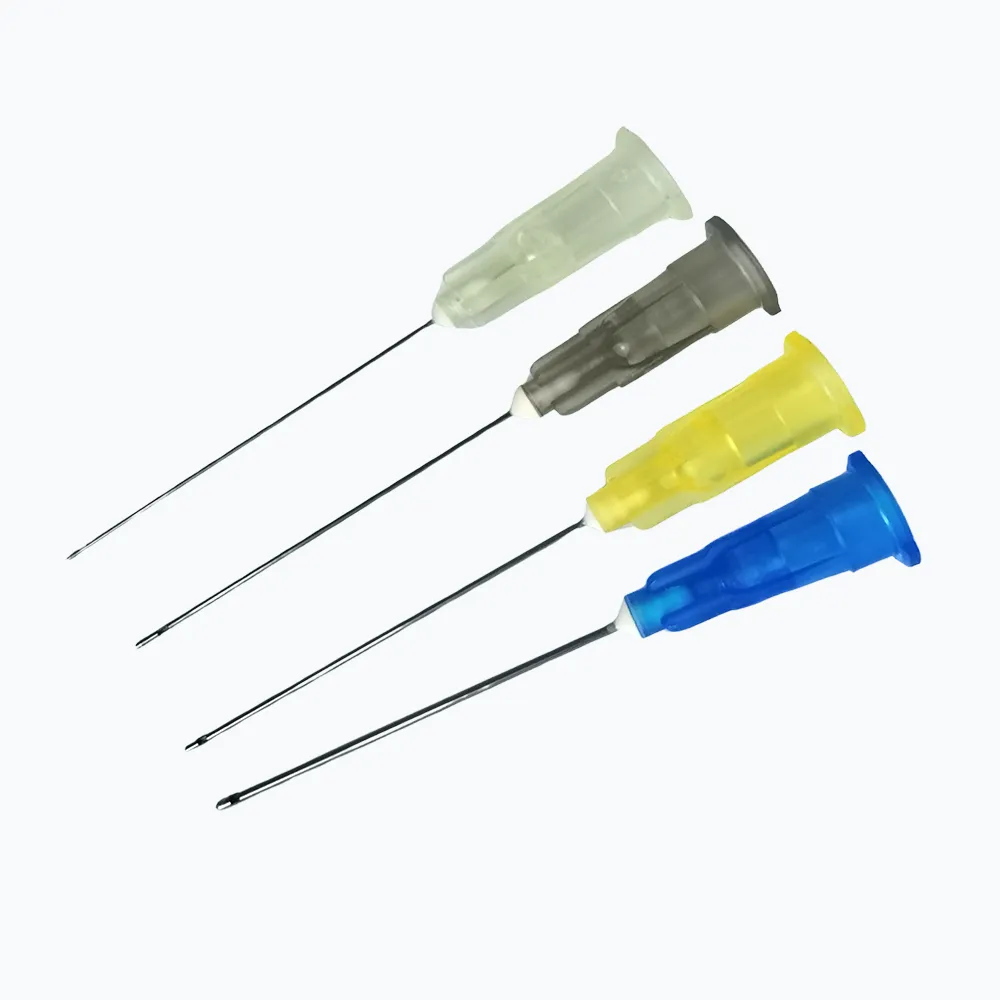

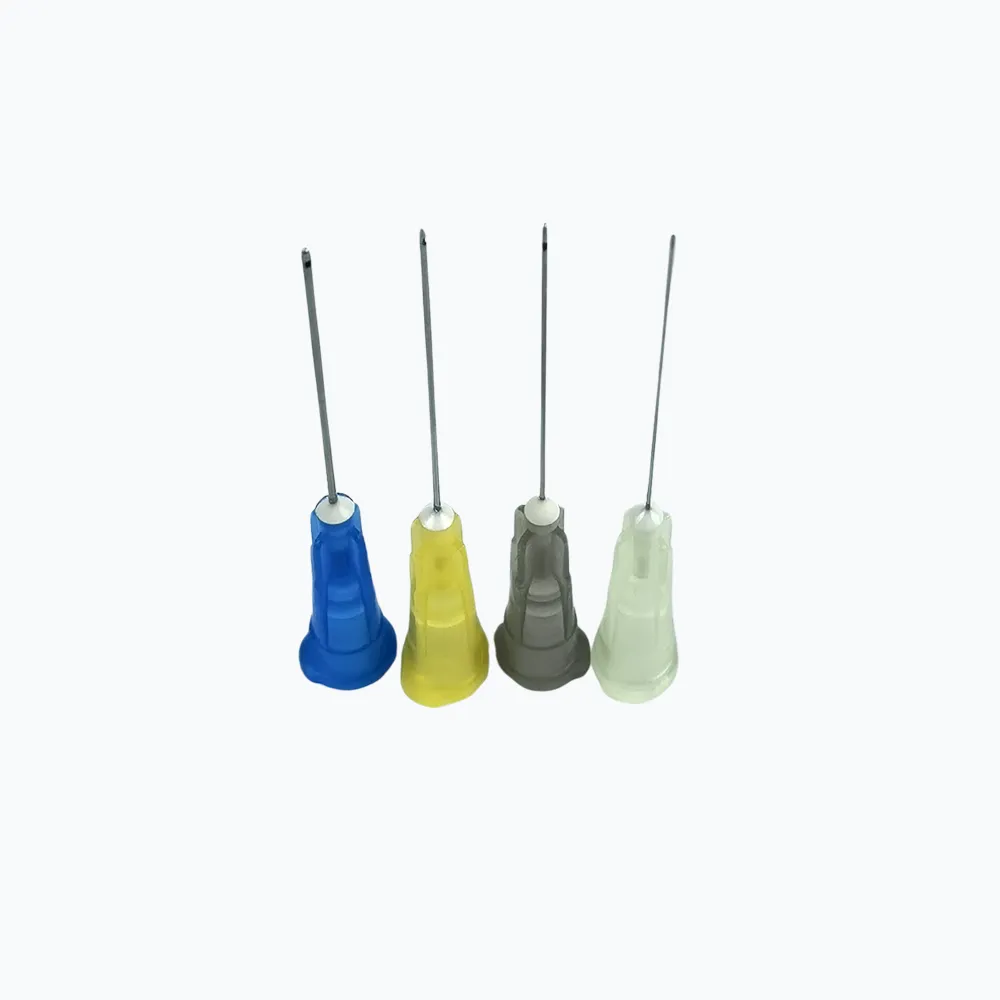

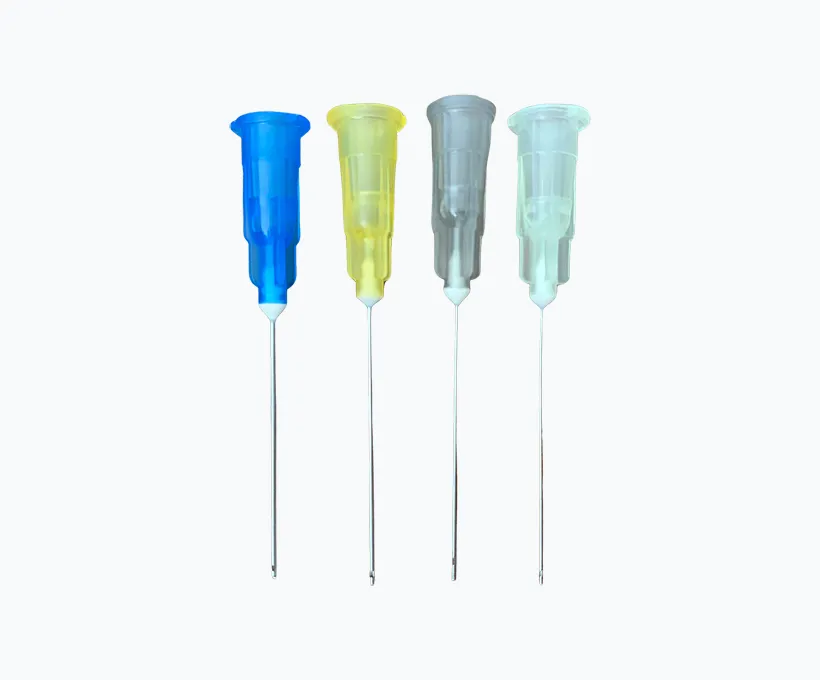

The Irrigation Needle is an essential endodontic instrument designed for effective canal irrigation during root canal procedures. These precision-engineered needles ensure optimal delivery of irrigating solutions deep into the root canal system, facilitating thorough cleaning and disinfection. With color-coded hubs for easy gauge identification and multiple tip configurations, our irrigation needles provide clinicians with the versatility needed for successful endodontic treatments across varying canal anatomies.
Product Highlights
• Color-coded hub system for instant gauge identification and safety
• Multiple tip designs including open-end and side-vented options
• Premium stainless steel construction for durability and flexibility
• Available in four gauge sizes (23G-30G) for various canal dimensions
• Both sterile and non-sterile packaging options available
Specifications
| Parameter | Details |
|---|---|
| Item | Irrigation Needle |
| Model Number | E50017 |
| Material | Medical-grade stainless steel |

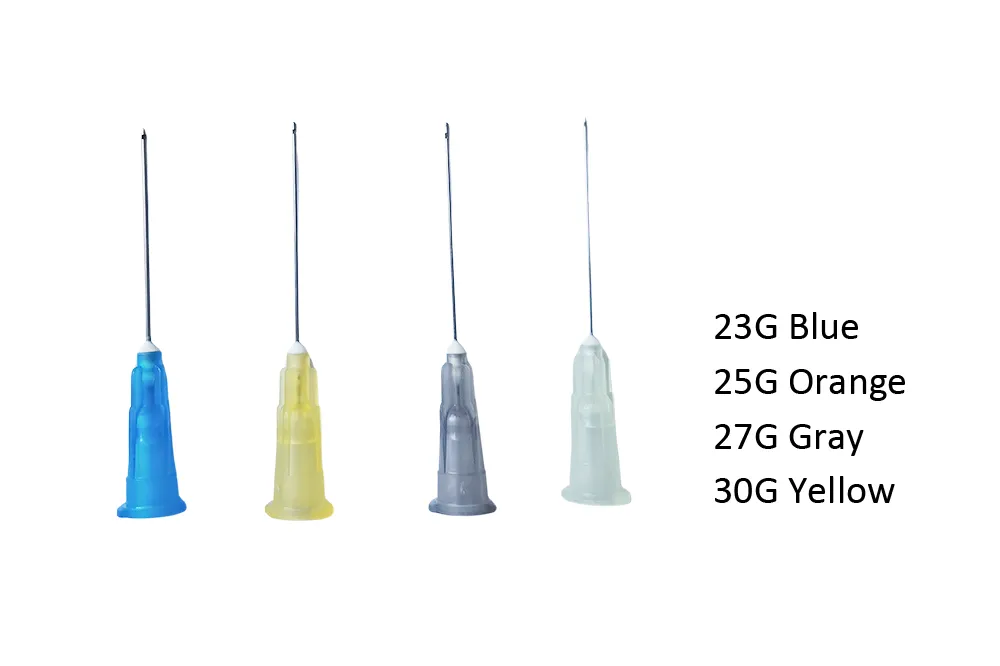

| Gauge Options | 23G (Blue), 25G (Orange), 27G (Gray), 30G (Yellow) |

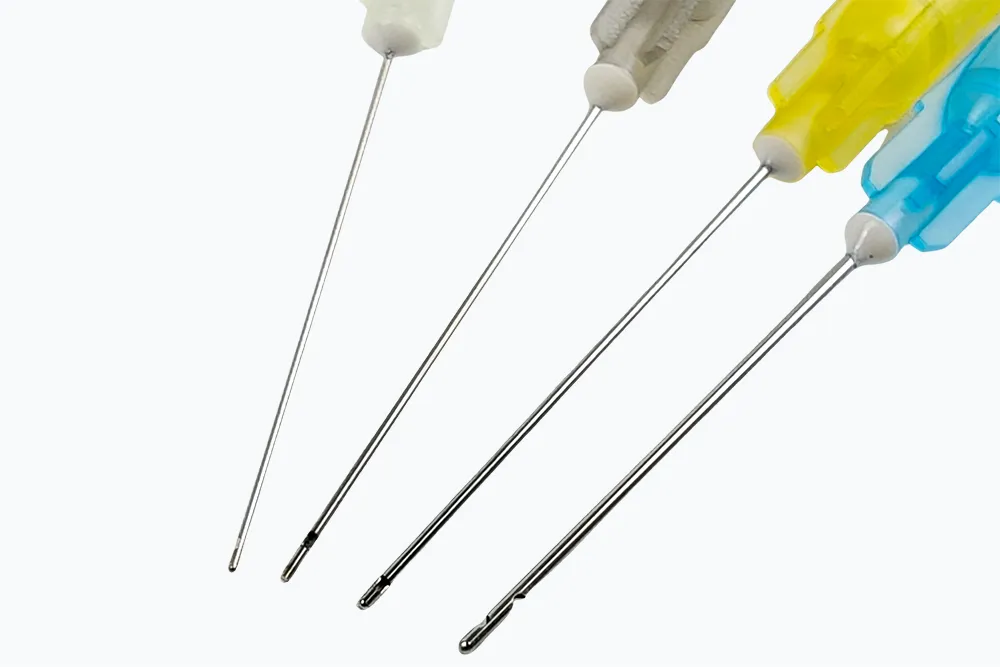

| Tip Designs | Open-end, Side-vented, Side-cut |
| Needle Length | 25mm, 27mm, 30mm, 35mm |
| Hub Material | Color-coded plastic |

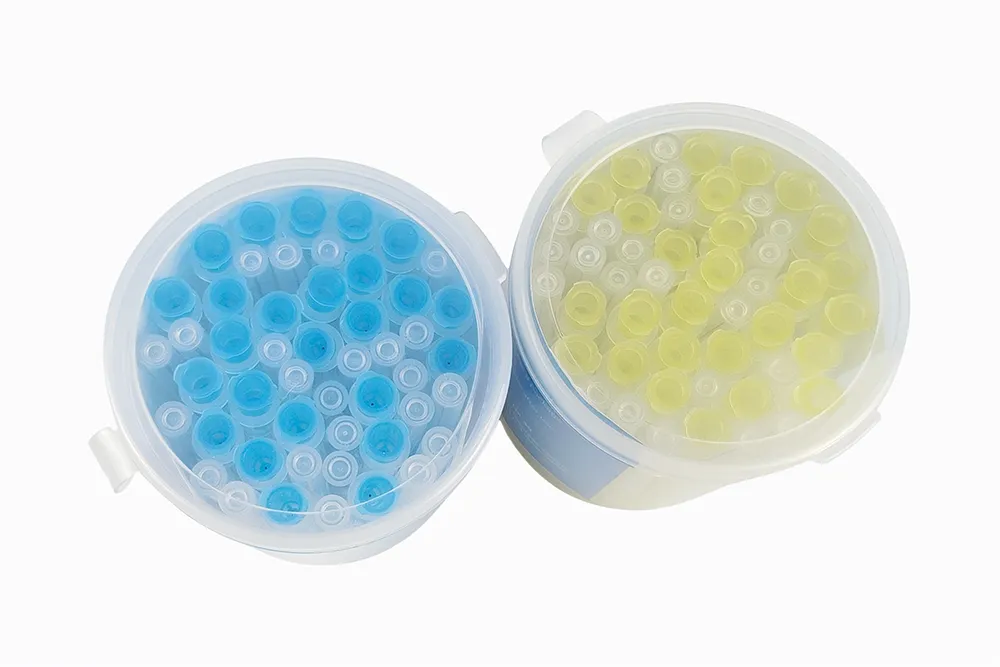

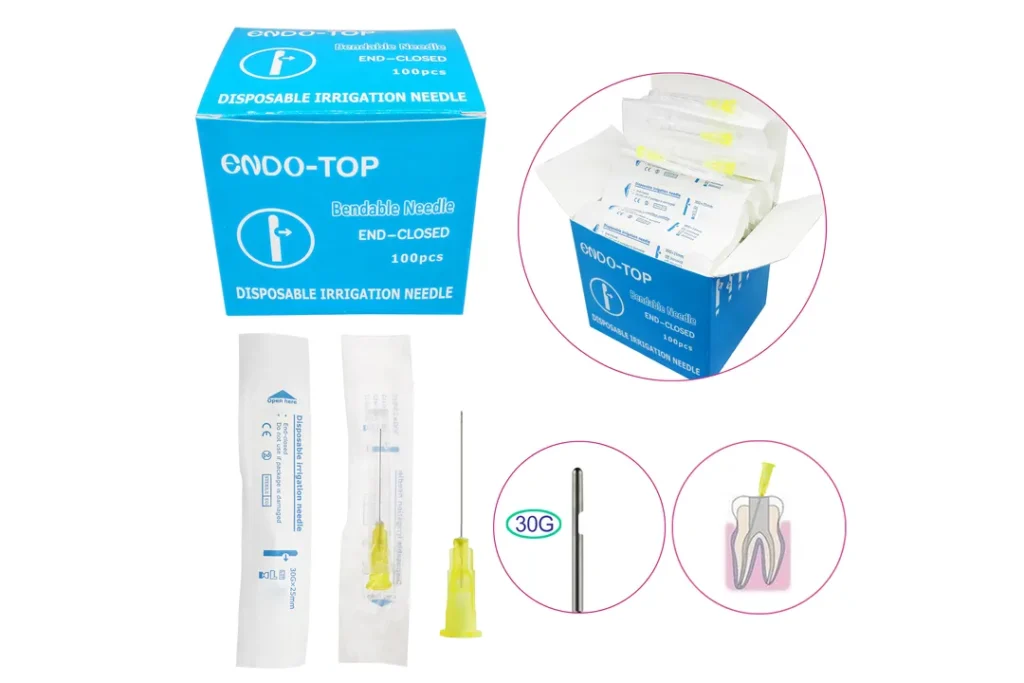

| Packaging | 100pcs/bag or 100pcs/box |
Technical Advantages
Our Irrigation Needles feature advanced manufacturing techniques that ensure consistent bore diameter and smooth internal surfaces, promoting laminar flow of irrigating solutions. The precision-ground tips minimize the risk of canal perforation while maximizing irrigation effectiveness. The side-vented design creates a safer irrigation pattern by directing flow laterally and coronally, reducing the risk of periapical extrusion of irrigants.
The color-coded hub system follows international standards, allowing immediate visual identification of needle gauge during procedures. This critical safety feature helps prevent inadvertent use of inappropriate needle sizes and supports efficient workflow management. The flexible stainless steel construction provides the perfect balance between rigidity for canal navigation and flexibility to follow canal curvatures without permanent deformation.
Application Scenarios
• Primary canal irrigation during chemomechanical preparation
• Final irrigation protocols with sodium hypochlorite and EDTA
• Delivery of intracanal medicaments between appointments
• Passive ultrasonic irrigation procedures
• Calcium hydroxide paste removal from canal systems
• Smear layer removal in preparation for obturation
Instructions for Use
- Select appropriate gauge based on canal size and apical preparation
- Attach needle securely to irrigating syringe
- Insert needle to working length minus 1-2mm for safety
- Apply gentle pressure with slow, controlled irrigation flow
- Use continuous in-and-out motion during irrigation
- Replace needle if resistance is encountered or bending occurs
Cautions
• Never force needle to full working length – maintain 1-2mm safety margin
• Avoid wedging needle in canal to prevent solution extrusion
• Inspect needle for damage or blockage before each use
• Use appropriate personal protective equipment during irrigation procedures
Storage
Store in original packaging in a clean, dry environment. Keep away from moisture and direct sunlight. Maintain room temperature storage conditions. For sterile products, check package integrity before use and do not use if packaging is compromised.
Technical FAQ
Q1: What is the difference between side-vented and open-end needles?
A1: Side-vented needles have closed tips with lateral openings that direct irrigant flow sideways and coronally, reducing apical extrusion risk. Open-end needles deliver solution directly through the tip, providing more aggressive debris removal but requiring careful depth control.
Q2: How do I choose the correct gauge for my procedure?
A2: Gauge selection depends on canal size after instrumentation. Use 30G (yellow) for narrow canals, 27G (gray) for small-to-medium canals, 25G (orange) for medium canals, and 23G (blue) for large canals. The needle should fit loosely in the canal to allow irrigant backflow.
Q3: Can these needles be used with all irrigating solutions?
A3: Yes, our stainless steel needles are compatible with all common endodontic irrigants including sodium hypochlorite, chlorhexidine, EDTA, and saline. The material resists corrosion from these solutions during normal clinical use.
Q4: What is the recommended insertion depth for safe irrigation?
A4: Insert the needle to 1-2mm short of the working length. This safety margin prevents binding, allows proper irrigant flow, and reduces the risk of periapical extrusion. Never force the needle to bind in the canal.
Q5: How can I prevent needle separation during use?
A5: Avoid excessive bending or pre-bending needles. Use gentle insertion pressure and never force against resistance. Replace needles showing any signs of damage or permanent deformation. Consider using pre-bent needles for severely curved canals.
Order FAQ
Q1: What packaging options are available?
A1: We offer two primary packaging options: 100 pieces per bag for cost-effective bulk use, and 100 pieces per box for better organization and storage. Both sterile and non-sterile versions are available depending on your clinical protocols.
Q2: Can I order specific gauge and tip combinations?
A2: Yes, we support customized orders for specific gauge and tip design combinations. Minimum order quantities apply for custom configurations. Contact our sales team to discuss your specific requirements.
Q3: What are the available needle lengths?
A3: Standard lengths include 25mm, 27mm, 30mm, and 35mm. The 25mm and 27mm lengths are most commonly used for anterior and premolar teeth, while 30mm and 35mm are preferred for molars and teeth with long roots.
Q4: Do you offer sample kits for evaluation?
A4: Yes, we provide sample kits containing all four gauge sizes with different tip designs. This allows you to evaluate the needles’ performance in various clinical situations before placing bulk orders.
Q5: What certifications are provided with the needles?
A5: All products come with CE certification, ISO 13485 compliance documentation, and material safety certificates. Sterile products include sterilization validation reports. Additional regulatory documentation is available for specific markets upon request.
