Alginate impression materials remain one of the most widely used dental consumables in modern dentistry, offering an ideal balance of accuracy, ease of use, and cost-effectiveness. With advanced formulations now featuring 20μm particle fineness and 168-hour dimensional stability, today’s alginate materials deliver exceptional results for routine impressions and specialized clinical applications. Whether you’re selecting materials for general restorations or high-precision prosthetic work, understanding the properties and variations of modern alginate materials is crucial for achieving optimal results in your practice.
What Are Alginate Impression Materials?
Alginate impression materials are irreversible hydrocolloid materials derived from seaweed extracts, specifically sodium alginate. These elastic impression materials are primarily used for creating accurate negative impressions of teeth and surrounding oral tissues. The material undergoes a chemical reaction when mixed with water, transforming from a viscous paste into a flexible, rubber-like consistency that captures fine details of dental structures.
Key Chemical Composition
EvenDent alginate impression materials contain precisely formulated components:
- Sodium alginate (CAS: 9005-38-3): The primary active ingredient providing gel formation
- Calcium sulfate (CAS: 7778-18-9): Controls setting time and cross-linking reaction
- Diatomite (CAS: 61790-53-2): Acts as filler and reinforcing agent for structural strength
- Disodium hexafluorotitanate (CAS: 17116-13-1): Provides dimensional stability and tear resistance
- Zinc oxide (CAS: 1314-13-2): Enhances mechanical properties and antimicrobial characteristics
- Trisodium orthophosphate (CAS: 7601-54-9): Retards the setting reaction for optimal working time
This advanced formulation ensures consistent performance, superior dimensional stability, and enhanced patient comfort across all three precision levels.
Types of Alginate Impression Materials
Universal Type Alginate (E50001)
Total setting time : 3’00” (30″ mixing + ≥1’30” working + 1’00” in mouth)
Elastic recovery : 97%
Compressive strength : >0.5MPa
Tear strength : >0.38N/mm
Universal type alginate is ideal for:
- General porcelain restorations and jaw impressions
- Diagnostic casts and study models
- Orthodontic models
- Standard dental procedures
- Cost-effective routine applications
Key advantages:
- Excellent value for general practice
- Reliable performance for routine impressions
- Multi-color options with chromatic indicator
- Pleasant light fragrance formulation
High Precision Type Alginate (E50002)
Total setting time : 3’00” (optimized for precision)
Elastic recovery : 97%
Compressive strength : >0.55MPa
Tear strength : >0.4N/mm
High precision alginate is preferred for:
- Porcelain tooth impressions
- Crown and bridge preparations
- Dental bridges and veneers
- Quality-focused restorative work
- Opposing models
Key advantages:
- Enhanced mechanical properties
- Superior detail stability (48μm reappearance)
- Improved accuracy for prosthetic applications
- Consistent dimensional control
Super High Precision Type Alginate (E50003)
Total setting time : 3’00” (precision optimized)
Elastic recovery : 98%
Compressive strength : >0.6MPa
Tear strength : >0.48N/mm
Super high precision alginate offers:
- High precision local injection impressions
- Maximum dimensional accuracy requirements
- Premium quality prosthetic work
- Specialist dental applications
- Critical accuracy procedures
Key advantages:
- Highest elastic recovery rate (98%)
- Superior detail stability (45μm reappearance)
- Maximum tear strength (>0.48N/mm)
- Lowest permanent deformation (12%)
Essential Properties of Quality Alginate Materials
1. Ultra-Fine Particle Technology (20μm)
Advanced alginate materials feature 20μm particle fineness for both pre and post-disinfection detail reproduction. This ultra-fine particle technology ensures:
- Exceptional surface detail capture
- Consistent accuracy across all precision levels
- Reliable reproduction quality
- Enhanced clinical diagnostics
2. Progressive Detail Stability Technology
EvenDent alginate features varying detail stability based on precision requirements:
- Universal Type : 50μm reappearance stability
- High Precision : 48μm reappearance stability
- Super High Precision : 45μm reappearance stability
This graduated approach ensures optimal performance for each specific application while maintaining cost-effectiveness.
3. Superior Elastic Recovery Performance
EvenDent alginate demonstrates industry-leading elastic recovery rates:
- Universal & High Precision : 97% elastic recovery
- Super High Precision : 98% elastic recovery
- Permanent deformation control : 16% (Universal) to 12% (Super High Precision)
This exceptional recovery enables accurate impression details and reliable prosthetic fit.
4. Chromatic Indicator Technology
Color-change functionality provides visual confirmation of setting stages:
- Yellow powder → Red when set
- White powder → Red when set
- Blue powder → Purple when set
- Green powder → Purple when set
- Light Green powder → Purple when set
- Pink, Purple, Orange → No color change (stable indicators)
This chromatic feature eliminates guesswork and ensures optimal timing for impression removal.
5. Dust-Free Formula
Advanced dust-free formulation provides:
- Cleaner mixing environment
- Reduced airborne particles
- Enhanced workplace safety
- Improved powder handling characteristics
6. Optimized Setting Characteristics
Precisely controlled timing sequence for clinical efficiency:
- Mixing time : 30 seconds for homogeneous consistency
- Working time : ≥1’30” for comfortable tray loading
- Intraoral time : 1’00” for patient comfort
- Total setting time : 3’00” for complete polymerization
7. Enhanced Mechanical Properties
Progressive strength characteristics across product range:
- Compressive strength : 0.5-0.6MPa range
- Tear strength : 0.38-0.48N/mm range
- Gypsum compatibility : Passes all compatibility tests
- Consistent performance : Batch-to-batch reliability
8. Versatile Application Range
Beyond traditional dental use:
- Dental applications : Diagnostic casts, orthodontic models, opposing models
- Prosthetic applications : Dental bridges and veneers
- 3D casting applications : Body parts such as hands and feet
- Flexible mixing ratios : 1:2 for dental use, 1:3 for 3D casting
Alginate Type Comparison: EvenDent Product Line
| Property | Universal Type (E50001) | High Precision (E50002) | Super High Precision (E50003) |
|---|---|---|---|
| Application | General porcelain & jaw | Porcelain tooth impressions | Local injection work |
| Elastic Recovery | 97% | 97% | 98% |
| Compressive Strength | >0.5MPa | >0.55MPa | >0.6MPa |
| Tear Strength | >0.38N/mm | >0.4N/mm | >0.48N/mm |
| Permanent Deformation | 16% | 15% | 12% |
| Detail Stability | 50μm | 48μm | 45μm |
| Detail Reproduction | 20μm | 20μm | 20μm |
| Powder-Water Ratio | 10g/22mL | 10g/22mL | 10g/22mL |
| Total Setting Time | 3’00” | 3’00” | 3’00” |
| Working Time | ≥1’30” | ≥1’30” | ≥1’30” |
| Chromatic Options | Yes | Yes | Yes |
| Gypsum Compatibility | Passes test | Passes test | Passes test |
Application-Based Selection Guide
Universal Type (E50001)
- General porcelain restorations and jaw impressions
- Diagnostic casts and study models
- Routine dental procedures
- Cost-effective general practice applications
- Standard orthodontic models
High Precision Type (E50002)
- Porcelain tooth impressions
- Crown and bridge preparations
- Dental bridges and veneers
- Quality-focused restorative work
- Opposing models for prosthetic planning
Super High Precision Type (E50003)
- High precision local injection impressions
- Complex prosthetic cases requiring maximum accuracy
- Specialist dental applications
- Premium quality procedures
- Critical dimensional accuracy requirements
Extended Applications Beyond Dentistry
All EvenDent alginate types are suitable for:
- 3D body part casting (hands, feet)
- Special mixing ratio : 100g powder : 300mL water (1:3) for 3D casting
- Art and craft applications
- Industrial molding applications

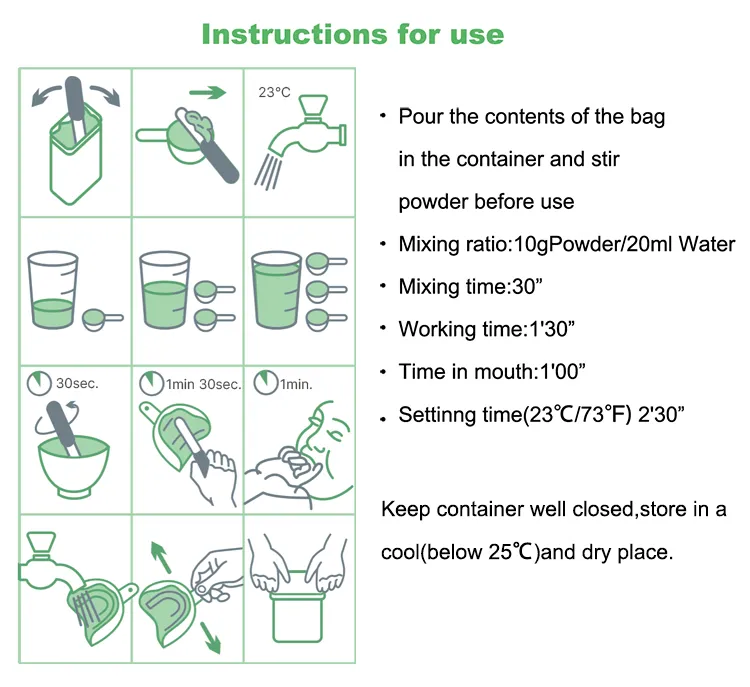

Proper Mixing and Handling Techniques
Optimal Mixing Ratios
Standard dental ratio : 10g powder : 22mL water
3D casting ratio : 100g powder : 300mL water (1:3)
Water temperature : 23°C / 73°F (room temperature)
Curing mechanism : Sets when mixed with tap or distilled water
EvenDent Alginate Step-by-Step Process
Phase 1: Mixing (30 seconds)
- Measure accurately : Use calibrated measuring devices for 10g:22mL ratio
- Add powder to water : Always add powder to water, never reverse
- Mix vigorously : 30 seconds with figure-8 motion for homogeneous consistency
- Monitor color change : Watch for chromatic indicator transformation
- Eliminate air bubbles : Use mechanical mixer when available
Phase 2: Working Time (≥1’30”)
6. Load tray immediately : Transfer mixed material to impression tray
7. Shape and position : Ensure even distribution in tray
8. Prepare for insertion : Position patient and tray for optimal access
9. Monitor chromatic indicator : Confirm proper material condition
Phase 3: Intraoral Setting (1’00”)
10. Seat promptly : Insert tray within working time limits
11. Maintain stability : Hold steady during 1-minute setting period
12. Watch color completion : Final chromatic change indicates full set
13. Remove carefully : Extract impression with steady pressure
Total Process Time: 3’00” – Optimized for clinical efficiency and complete polymerization
Chromatic Indicator Monitoring
Color Change Signals:
- Yellow → Red → Yellow : Setting progression visible
- White → Red → Yellow: Clear setting confirmation
- Blue → Purple → Yellow: Distinctive color transformation
- Light Green/Green → Purple → Light Green/Green: Multiple green options available
- Stable colors (Pink, Purple, Orange): No change indicators
Benefits of Chromatic Technology:
- Eliminates timing guesswork
- Visual confirmation of setting stages
- Reduced risk of premature removal
- Enhanced clinical confidence
Critical Success Factors
Temperature control : Maintain 23°C ± 2°C water temperature
- Warmer water accelerates setting reaction
- Cooler water extends working time
- Room temperature provides optimal balance
Mixing precision : Achieve dust-free, homogeneous consistency
- 30-second mixing ensures complete powder incorporation
- Figure-8 motion prevents air entrapment
- Mechanical mixing enhances consistency
Timing adherence : Follow the 30″-≥1’30”-1’00” sequence
- Consistent timing ensures optimal material properties
- Chromatic indicators provide visual timing cues
- Total 3-minute cycle allows complete polymerization
Ratio Versatility for Different Applications
Dental Use (Standard)
- 10g powder : 22mL water
- Optimal for all three precision types
- Standard clinical applications

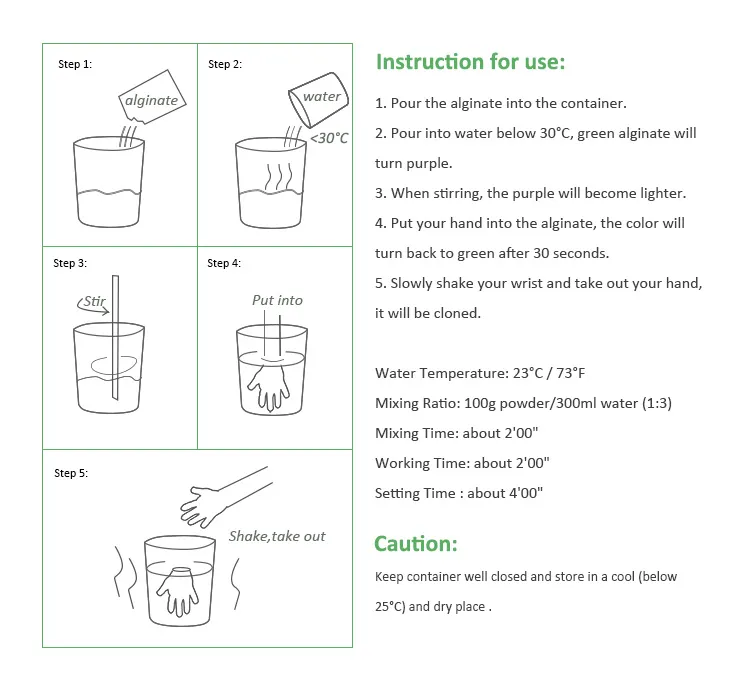

3D Casting Applications
- 100g powder : 300mL water (1:3 ratio)
- Higher water content for extended working time
- Suitable for body part impressions (hands, feet)
- Art and craft applications
Storage and Shelf Life Management
Optimal Storage Conditions
- Temperature : 18-25°C (64-77°F)
- Humidity : Less than 50% relative humidity
- Light exposure : Store in dark, dry conditions
- Container : Keep in original sealed packaging
Shelf Life Indicators
- Unopened packages : 2-3 years from manufacture date
- Opened packages : 6-12 months with proper storage
- Quality degradation signs :
- Longer setting times
- Reduced tear strength
- Poor surface detail reproduction
Troubleshooting Common Alginate Issues
Problem: Chromatic Indicator Not Changing
Causes:
- Incorrect powder-to-water ratio (not 10g:22mL)
- Water temperature too cold or too hot
- Expired or improperly stored material
- Insufficient mixing time (less than 30 seconds)
Solutions:
- Verify 10g:22mL ratio accuracy with calibrated measures
- Use room temperature water (23°C/73°F)
- Check expiration date and storage conditions
- Mix for full 30 seconds with vigorous figure-8 motion
Problem: Premature Setting (Under 3 Minutes)
Causes:
- Warm ambient temperature or water
- High humidity environment
- Contaminated measuring equipment
- Accelerated setting due to powder age
Solutions:
- Cool mixing environment to 23°C
- Use distilled water at proper temperature
- Clean and dry all mixing equipment
- Check material freshness and storage conditions
Problem: Delayed Setting (Over 3 Minutes)
Causes:
- Cold mixing conditions
- Insufficient mixing intensity
- High water content ratio
- Material deterioration
Solutions:
- Warm environment slightly to 23°C
- Increase mixing vigor for full 30 seconds
- Verify exact 10g:22mL ratio
- Replace aged material stock
Problem: Poor Detail Reproduction
Causes:
- Inadequate mixing creating lumps
- Air bubble incorporation
- Improper tray loading technique
- Premature impression removal
Solutions:
- Mix for complete 30-second duration
- Use mechanical mixer when available
- Load tray smoothly without air entrapment
- Wait for complete chromatic color change
Problem: Difficult Model Separation
Causes:
- Over-extended setting time
- Improper storage before pouring
- Gypsum incompatibility
- Material degradation
Solutions:
- Pour within recommended timeframe
- Store in sealed humid environment if delayed
- Use gypsum compatible with EvenDent alginate
- Verify material storage conditions
Problem: Inconsistent Color Change Pattern
Causes:
- Uneven mixing distribution
- Temperature variations in mixing bowl
- Contaminated powder
- Incorrect material type selection
Solutions:
- Ensure thorough 30-second mixing with figure-8 pattern
- Use consistent room temperature environment
- Use fresh, uncontaminated powder
- Verify correct chromatic type selection
Problem: Powder Dusting During Mixing
Causes:
- Rapid powder addition to water
- Inadequate dust-free formula utilization
- Poor ventilation during mixing
- Improper measuring technique
Solutions:
- Add powder gradually to water
- Utilize EvenDent’s dust-free formula advantage
- Ensure adequate mixing area ventilation
- Use proper measuring and pouring techniques
Optimization Tips for Best Results
Material Selection:
- E50001 Universal : Routine procedures, cost-conscious practices
- E50002 High Precision : Crown and bridge work, prosthetic applications
- E50003 Super High Precision : Complex cases requiring maximum accuracy
Environmental Control:
- Maintain 23°C ambient temperature
- Control humidity levels
- Ensure good ventilation
- Use consistent water temperature
Timing Optimization:
- Follow 30″-≥1’30”-1’00” sequence strictly
- Use chromatic indicators for visual confirmation
- Allow full 3-minute polymerization cycle
- Don’t rush impression removal
Quality Assurance:
- Store materials below 25°C in sealed containers
- Check expiration dates regularly
- Use calibrated measuring equipment
- Train staff on proper mixing techniques
Selection Criteria for Your Practice
High-Volume General Practice
Recommended : Fast-set alginate with good tear strength
- Reduces chair time
- Maintains quality standards
- Cost-effective for routine procedures
Specialty Prosthetic Practice
Recommended : Extended-pour alginate or consider silicone alternatives
- Superior dimensional accuracy
- Multiple pour capability
- Professional quality results
Orthodontic Practice
Recommended : Regular-set alginate with excellent detail reproduction
- Adequate working time for complex cases
- Good surface detail for appliance fabrication
- Patient comfort during longer procedures
Pediatric Dental Practice
Recommended : Fast-set alginate with pleasant flavor options
- Minimizes patient anxiety
- Reduces movement artifacts
- Child-friendly experience
Quality Standards and Certifications
International Standards Compliance
- ISO 21563 : Dental alginate impression materials
- ADA Specification No. 18 : American Dental Association standards
- EN ISO 13485 : Quality management for medical devices
Key Quality Indicators
- Consistent setting times (±10% variation)
- Dimensional accuracy within specifications
- Biocompatibility testing completed
- Batch-to-batch consistency verified
Cost-Effectiveness Analysis
Total Cost of Ownership Factors
- Material cost per unit
- Chair time reduction with fast-set materials
- Remake rates due to quality issues
- Storage and handling requirements
- Staff training and efficiency
ROI Optimization Tips
- Calculate actual usage : Track impressions per container
- Evaluate remake rates : Quality materials reduce failures
- Consider time savings : Fast-set materials increase throughput
- Assess storage costs : Extended-pour reduces waste
Future Trends in Alginate Technology
Digital Integration
- Hybrid workflows combining physical impressions with digital scanning
- Improved materials for scanning compatibility
- Enhanced dimensional stability for digital model fabrication
Bioactive Alginate Materials
- Antimicrobial additives for infection control
- Fluoride-releasing formulations
- Enhanced biocompatibility profiles
Sustainability Initiatives
- Eco-friendly packaging solutions
- Biodegradable alginate formulations
- Reduced environmental impact manufacturing
Conclusion and Best Practices
Selecting the right alginate impression material requires careful consideration of your practice’s specific needs, patient demographics, and quality requirements. High-quality alginate materials, when properly handled and stored, provide excellent clinical results at a fraction of the cost of alternative impression materials.
Key takeaways for optimal alginate use:
- Match material type to clinical application
- Maintain strict mixing protocols
- Store materials in optimal conditions
- Monitor quality indicators regularly
- Train staff on proper handling techniques
- Evaluate cost-effectiveness beyond material price
By following these guidelines and selecting appropriate alginate impression materials, dental professionals can achieve consistent, high-quality results while maintaining cost-effective operations.
Ready to Experience Superior Alginate Performance?
Discover why dental professionals worldwide trust EvenDent alginate impression materials for consistent, high-quality results. Our advanced alginate formulations feature chromatic indicators, dust-free technology, and progressive precision levels engineered for demanding dental practices.
Why Choose EvenDent Alginate Materials?
✅ 20μm Ultra-Fine Particles – Consistent detail reproduction across all precision levels
✅ Chromatic Color Indicators – Visual confirmation eliminates timing guesswork
✅ Dust-Free Formula – Cleaner, safer mixing environment
✅ Three Precision Levels – E50001 Universal, E50002 High Precision, E50003 Super High Precision
✅ Superior Elastic Recovery – Up to 98% recovery rate with minimal permanent deformation
✅ Versatile Applications – Dental impressions plus 3D body part casting capability
✅ Gypsum Compatibility – Passes all compatibility tests for reliable model fabrication
✅ Pleasant Light Fragrance – Reduces patient discomfort and nausea risk
Our Complete Alginate Product Range
🟢 E50001 Universal Type – General porcelain restorations and jaw impressions (97% elastic recovery, >0.5MPa strength)
🟠 E50002 High Precision Type – Porcelain tooth impressions and crown work (97% elastic recovery, >0.55MPa strength)
🔵 E50003 Super High Precision Type – High precision local injection impressions (98% elastic recovery, >0.6MPa strength)
Available Color Options with Chromatic Technology
- Yellow → Changes to Red when set
- White → Changes to Red when set
- Blue → Changes to Purple when set
- Green varieties → Change to Purple when set
- Stable colors : Pink, Purple, Orange (no change indicators)
Flexible Packaging Options
- Standard packaging : 500g/bag, 24 bags/carton
- Alternative sizes : 200g, 454g, 1000g, 20kg, 25kg available
- Packaging types : Standard bags, foil bags, kraft paper bulk
- Custom options : Available for volume customers
Technical Specifications Summary
- Mixing ratio : 10g powder : 22mL water (dental), 1:3 ratio (3D casting)
- Working time : ≥1’30” with 30-second mixing
- Setting time : 3’00” total for complete polymerization
- Detail reproduction : 20μm pre/post-disinfection
- Shelf life : 3 years unopened, stored below 25°C
- Storage : Cool, dry place, tightly sealed container
Get Your Professional Quote Today
📞 Contact EvenDent specialists directly : +86-18016381172
🌐 Visit our official website : evendent.com
📧 Technical support : Request product specifications and samples
📦 Custom packaging : Available for volume orders
Join thousands of dental professionals who’ve upgraded to EvenDent’s chromatic alginate impression materials. Experience the difference that advanced formulation, visual indicators, and precision engineering make in your daily practice.
Related Articles:
